Boat Hoist Motor Kit - DC 24v - Wireless: For Flat Plate/Gear Plates Boat Hoists
SAFER, FASTER, STRONGER: Introducing the first Boat Hoist Motor Kit - DC 24v by Lake Lifter. This NEW all-in-one kit offers everything needed to quickly convert your Flat Plate boat hoist to SAFE, RELIABLE, DC POWER.

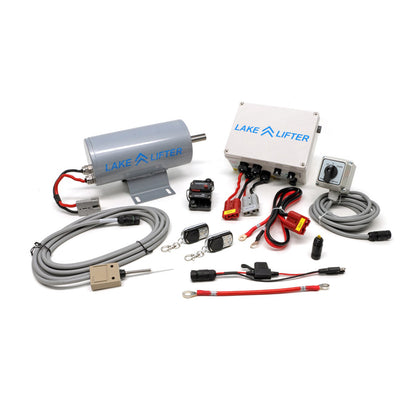

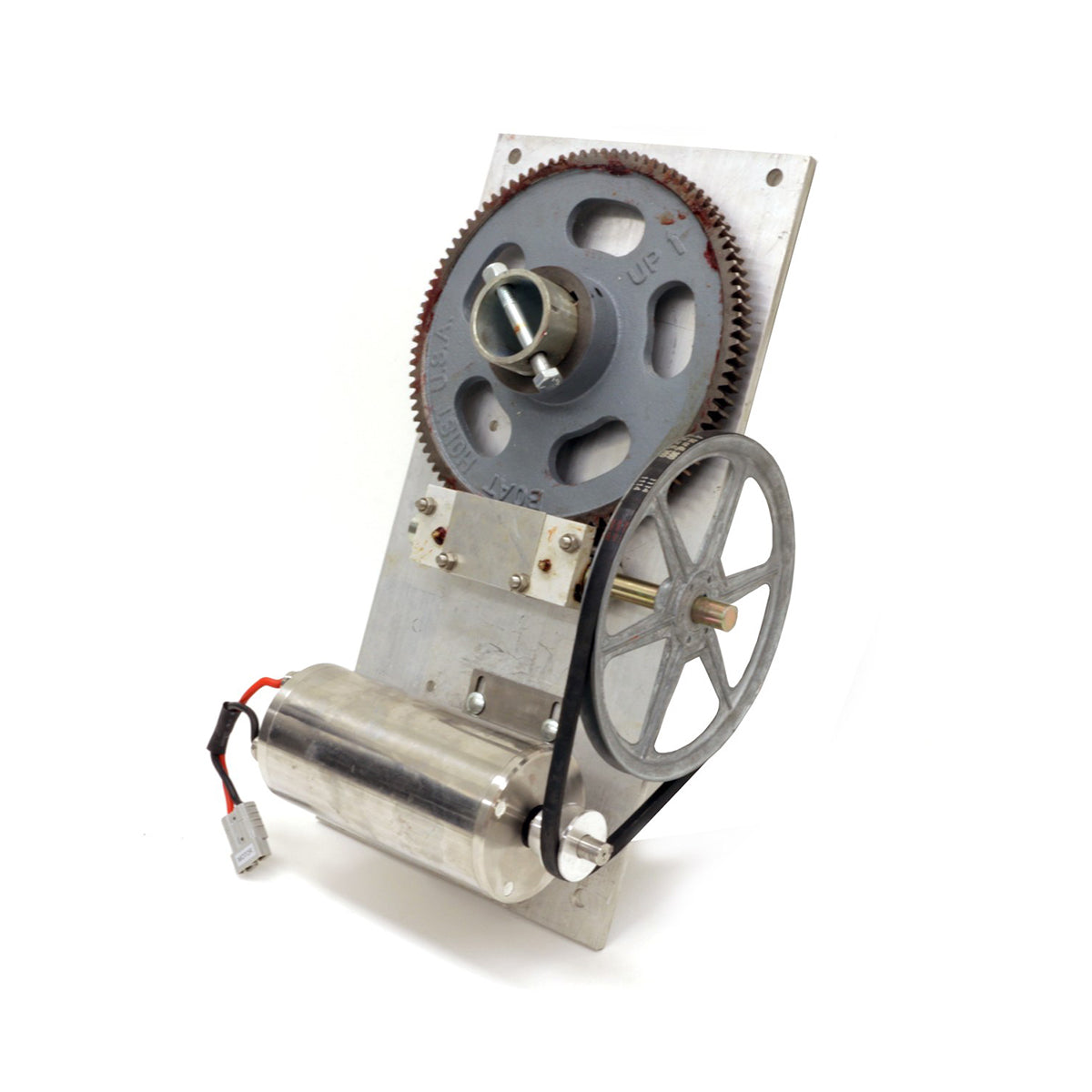

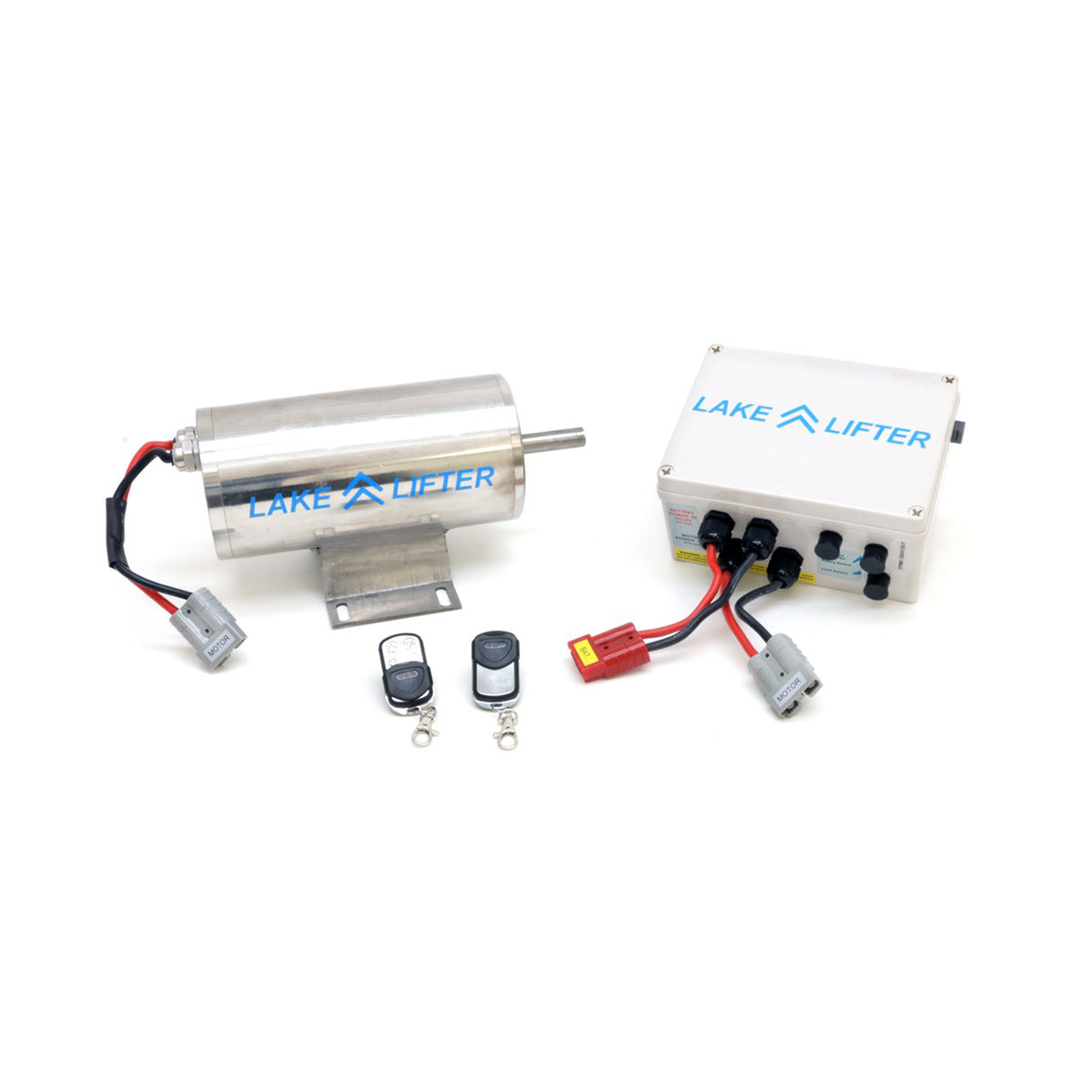

The Boat Hoist Motor Kit - DC 24v - Wireless features a powerful DC 24v 1.5hp Marine Grade Motor with a heavy duty control switch. Wiring cables, connectors & hardware are included. Our easy waterproof connect system makes wiring and installation quick and easy. (Fits and uses existing gear plate, belt + pulley hardware)

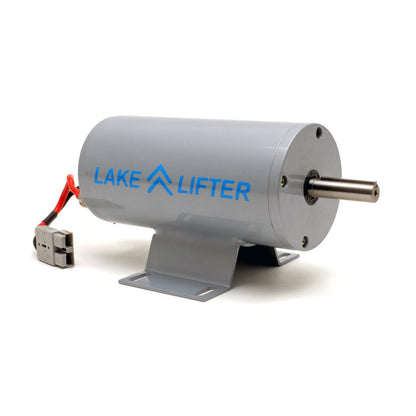

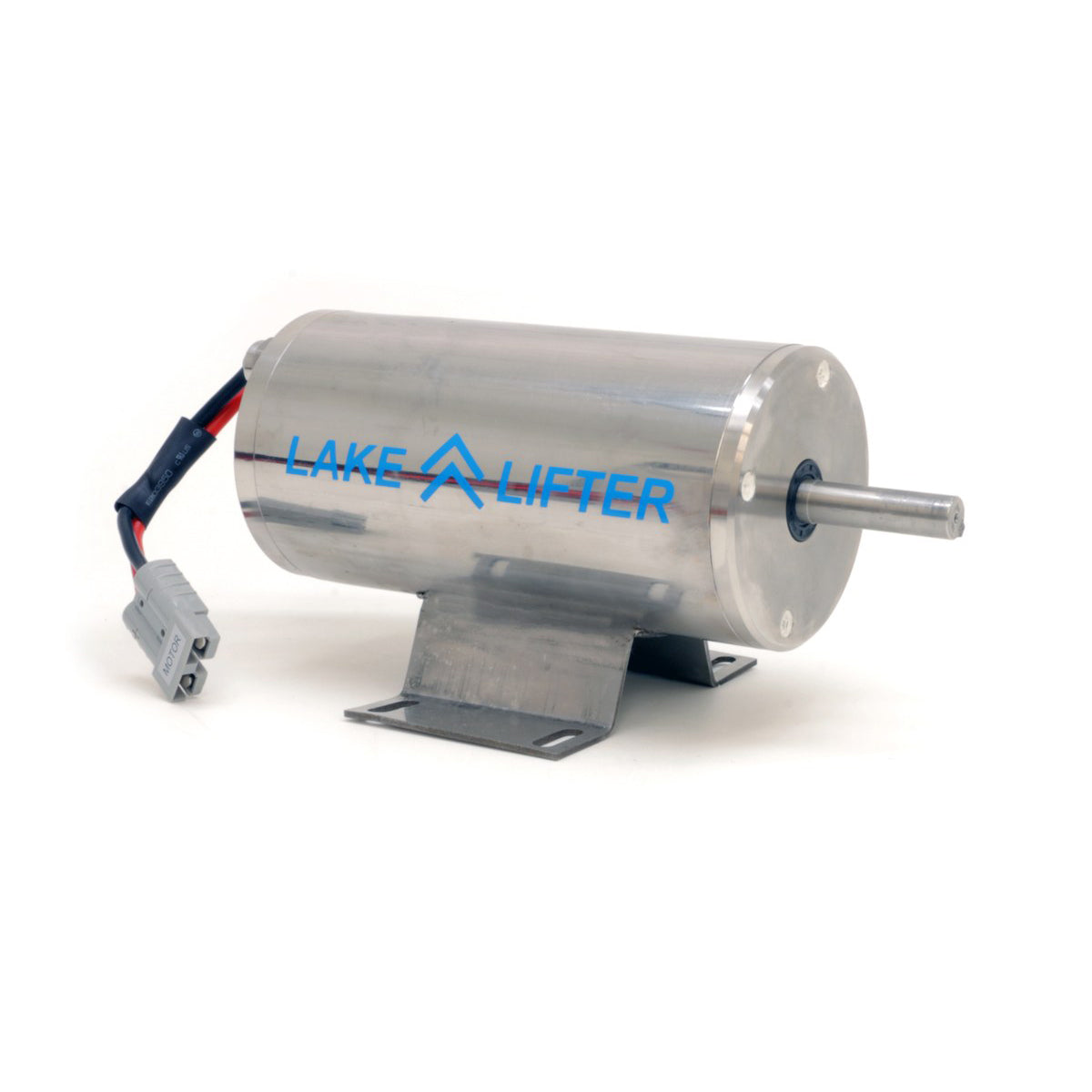

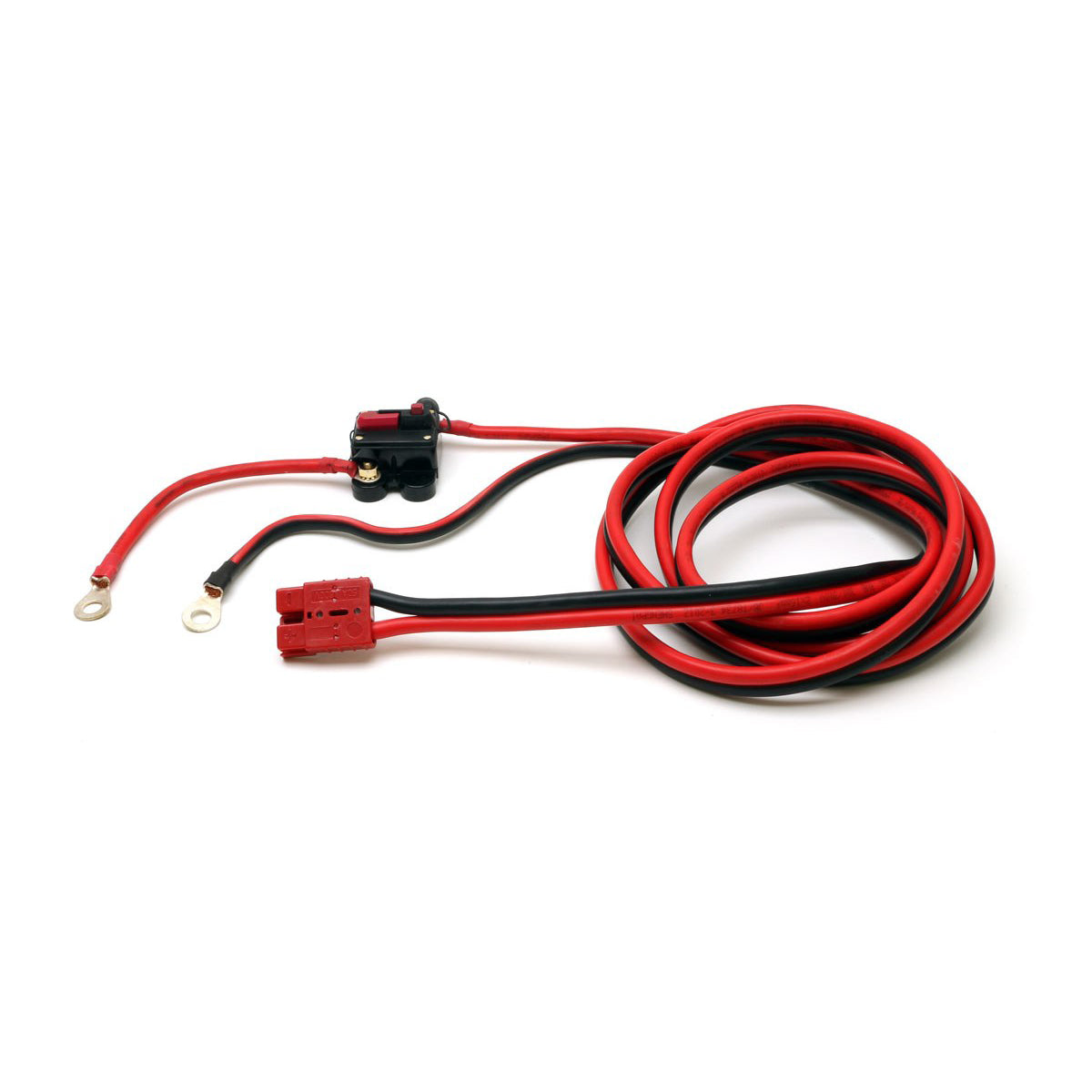

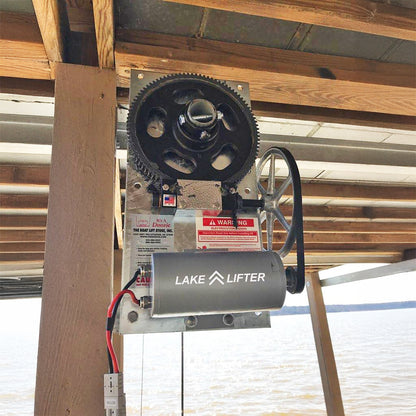

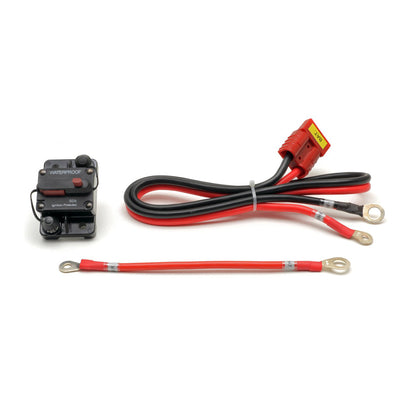

DC 24v 1.5hp MOTOR: The Lake Lifter Marine Grade DC Motor is 1.5hp and handles all single motor boat lifts with gear plates rated up to 8500 lbs. The Lake Lifter motor provides speed and convenience. The Lake Lifter Marine Grade Motor has faster lifting times compared to traditional AC powered. The sealed marine grade construction ensures trouble free operation year after year. A universal motor mount fits all flat-plate style open gear hoists, while the standard Batteries Not Included. A breaker fuse protects the system from any failure or overload. The breaker fuse is easily reset and does not require changing a fuse. The breaker fuse is installed in the lockable battery box and offers a convenient way to disconnect power preventing the boat lift from being operated.
5/8” shaft size fits all standard single and double pulley belt sizes.
WIRELESS CONTROL BOX: The heavy duty marine grade wireless control box is the heart of the system and offers numerous motor control and connectivity options. Easy connection ports make configuration and customizing a breeze.
WIRELESS KEY FOB CONTROL The boat lift motor can be conveniently controlled via wireless key fobs up to 200 feet. The 4 channel key fobs operates both UP/DN functions of the boat lift motor with an added lock button to prevent the system from being used. The wireless key fobs feature a sliding cover to prevent accidental operation. The key fobs are water-resistant and replacement units can be purchased and re-synced to the wireless control box.
WALL SWITCH CONTROL: As an added bonus for traditional operation, the kit includes a traditional styled wall switch for dock-side boat lift operation. Mounts to any wall or vertical post and allows UP/DN control of the boat lift. The wall switch connects to the wireless control box and is NOT required and can be left out of the system or added later if desired.

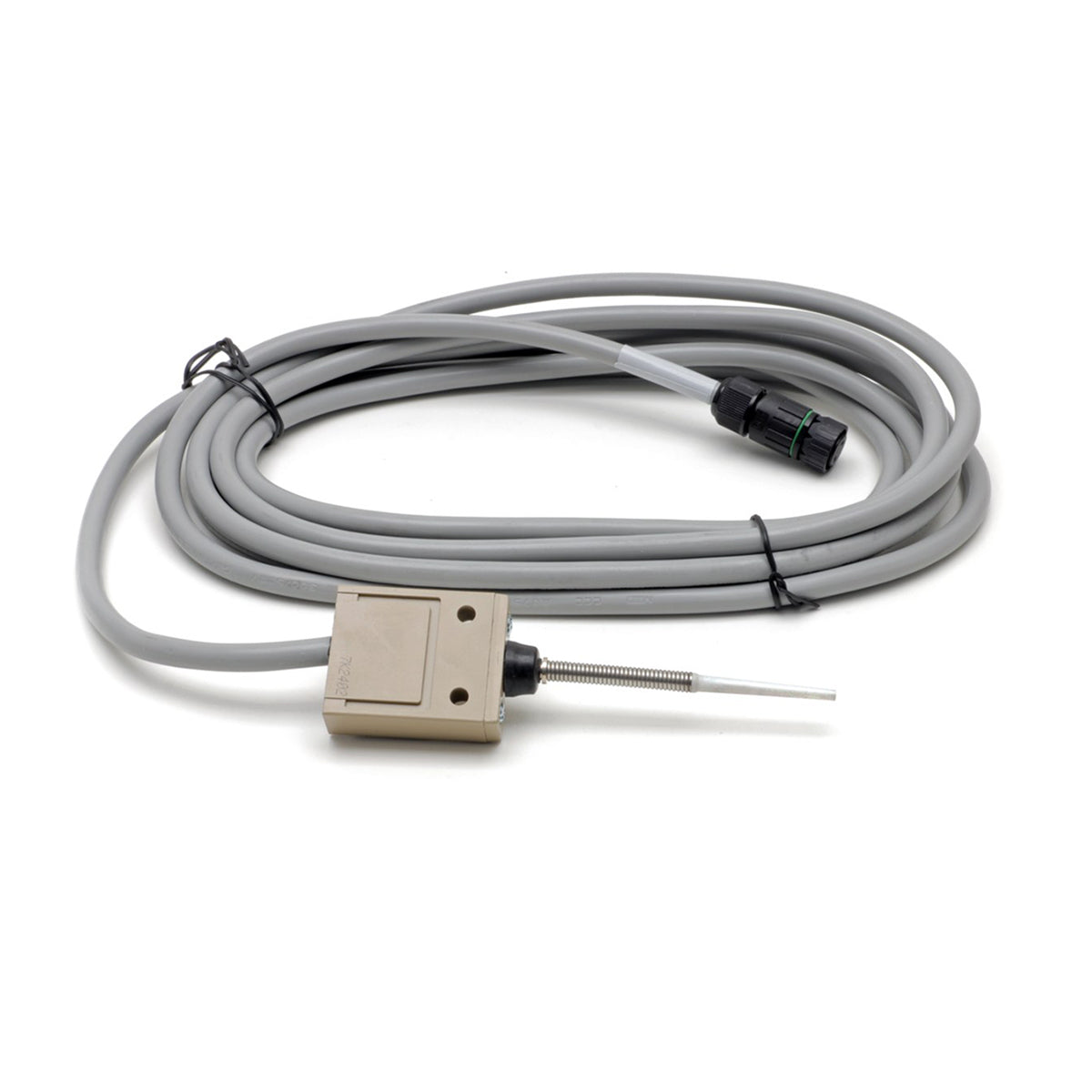

LIMIT SWITCH CONTROL: The water-proof limit switch is a convenient way to protect your boat and boat lift from accidental over height lifting. The limit switch “when tripped” will break the connectivity of the motor operating in the UP direction. The user will then ONLY be able to use the lift in the DN direction until the limit switch connection is restored. The universal design allows the limit switch to be mounted in just about any location or position that will make contact at the desired set height limit. Typical placement is making contact with the boat carriage at maximum height, or the linear spooling cable wind at maximum height. The limit switch function is optional. An included “cheater” allows users to bypass limit switch operation.
BATTERY POWERED: The Boat Hoist Motor Kit - DC 24v operates on safe DC-24v power. Two 12v deep cycle batteries are combined in series to create 24v. –
BATTERY BOX (Not Included - Sold Separately): We recommend our durable Fiberglass Battery Box which houses two batteries, motor control box, breaker fuse, and wiring. The Fiberglass Battery Box has optional lock to keep everything safe and secure. To add a Fiberglass Battery Box to your order, click HERE.
SAFETY: The Lake Lifter Manual DC Motor System offers boat lift operators a safer & faster alternative to traditional AC powered boat lift motors. The Lake Lifter Manual DC Motor Kit operates from SAFE low voltage DC 24v power eliminating electrical shock hazards around water.
BOAT LIFT SOLAR CHARGING KIT (Not Included - Sold Separately): To prevent the batteries from being depleted you will need one of our Boat Lift Solar Charging Kits to recharge the batteries between uses. The size and style of the charging kits will vary depending on the boat lift size, boat weight, and how frequently the boat lift is used. Heavier boats and more frequent boat lift usage require larger charging kits to replace the power used. To add a Boat Lift Solar Charging Kit to your order, click HERE.
DC 24v Flat Plate Motor System - Wireless Features & Benefits
2 Year Warranty Against Manufacturer Defects
SAFE DC 24v
8,500+ lb Capacity
Safer & Faster than AC
Wireless Key Fob
Manual Wall Switch
DC 24v 1.5hp Marine Motor
Wireless Control Box
2 Wireless Remotes
Manual Wall Switch
Wiring, Cables, Connectors
Fuse Breaker Protection
Limit Switch Bypass
Is it recommended to remove and store the Lift Tech Motor during the winter months?
Yes. If you remove your boat lift for the winter, it is recommended to store your Lift Tech Motor to protect it from the elements.
What is the max capacity of the Lift Tech Motor?
The Lift Tech Motor will lift vessels up to 7000lbs.
What lifts are compatible with the Lift Tech Motor?
The Lift Tech Motor is compatible with nearly all winch boxes with a wheel attached.
The Lift Tech Motor will work with lifts from:
Dutton Lainson 1200B
Dutton Lainson 2500/3500
Dutton Lainson B1200A
Dutton Lainson B1500A
Great Lakes Lift
ShoreMaster Whisper Winch
ShoreMaster Whisper Winch 2
