AC Boat Lift Blower Motor Control Box: (One Lift - Two Valves - Three Tanks)

Write a review
LF-AC-1L-2V-3TK-LG
$1,841.95
Inside Diameter of Air Hose
Optional Boat House Flood Light
+ −
Add to wish list
  • Shipping costs Shipping costs
  • Shipping costs Payment methods
  • Why Lake Lifter

AC Boat Lift Blower Motor Control Box

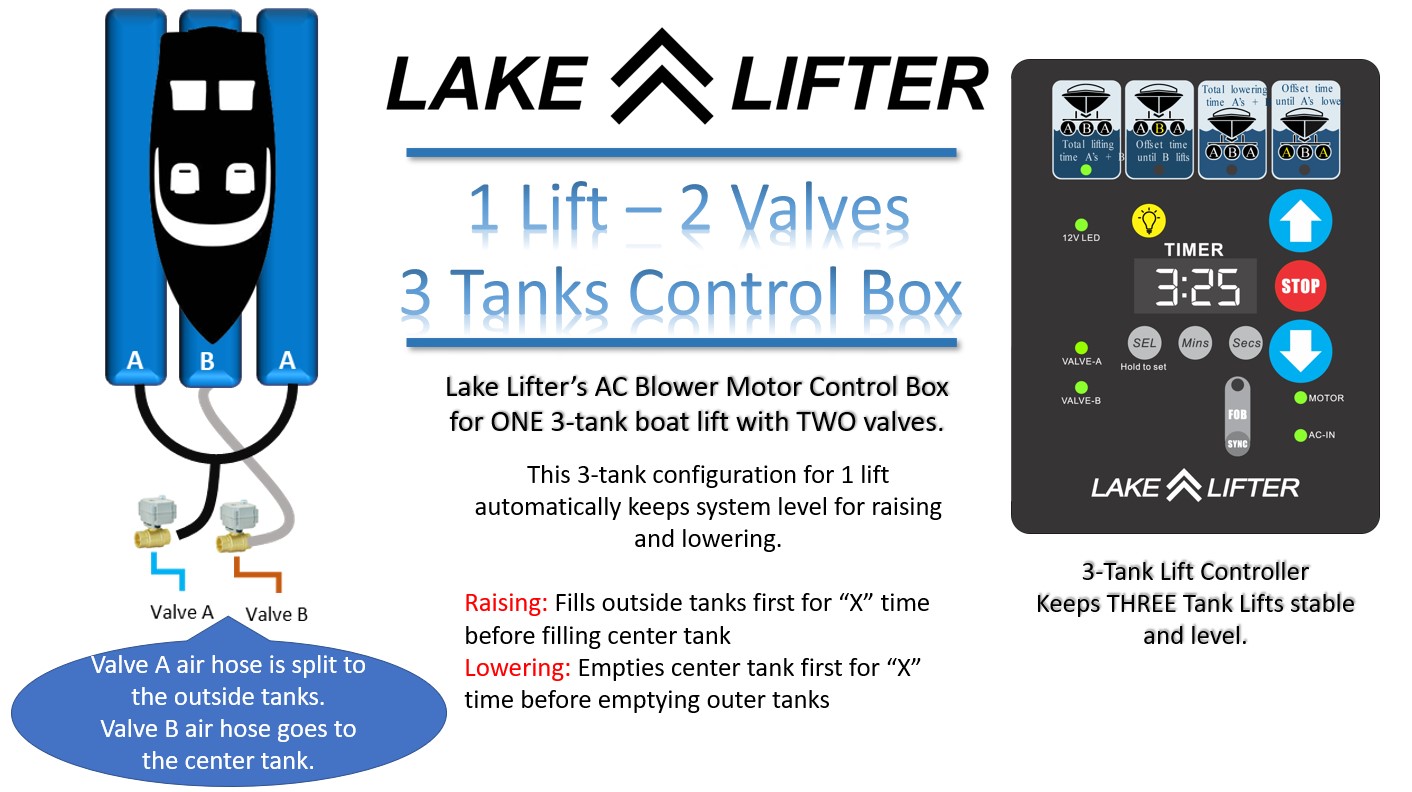

This 3-Tank 2-Valves Control Box controls ONE 3-tank boat lift with TWO valves. Valve A air hose is split to the outside tanks. Valve B air hose goes to the center tank. When raising, the outer tanks fill first then after a preset time delay the center tank is filled. When lowering the center tank empties first then after a preset time delay the outer tanks empty.  This lift configuration helps stabilize 3-tank style boat lifts that are prone to tilting during lifting & lowering.

SAFER, FASTER, STRONGER: Lake Lifter’s New AC Boat Lift Blower Motor Contrl Box is an all-in-one kit that provides everything needed to quickly power any air displacement boat lift. Works with all brands, makes, & models of air-powered boat lifts. Simply mount the control box to any vertical post to save precious dock space and connect your hose and your ready to go!

BLOWER MOTOR: Lake Lifter’s marine grade AC 110-120v blower motor control box is suited for the harshest enviornments.

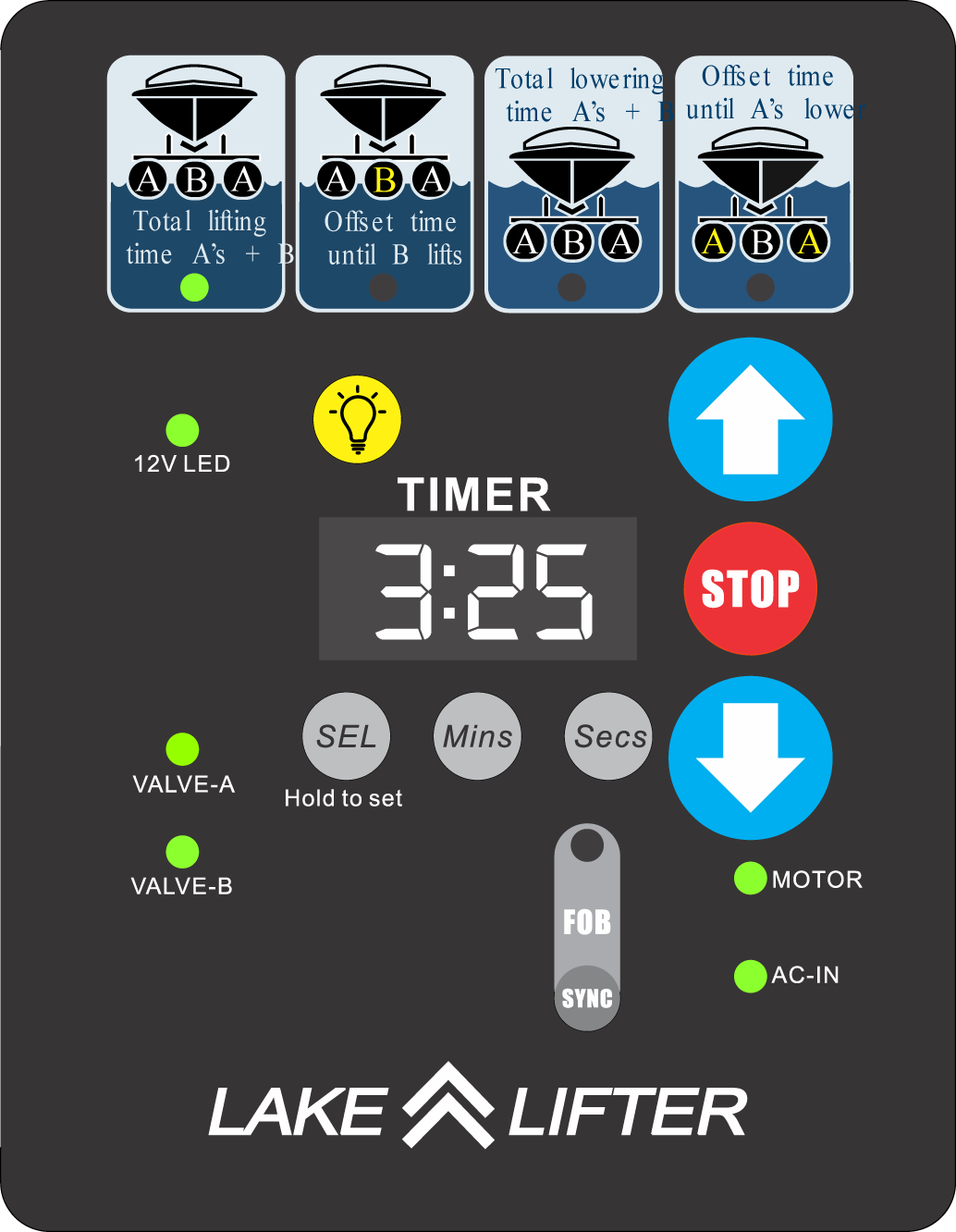

MOTOR CONTROLLER: Lake Lifter’s advanced motor controller provides robust power and convenience to fully automate the lifting and lowering of your boat. Programmable lifting and lowering timer options allow you to lift and lower the boat from a simple key fob operation. Simply program the lifting and lowering timers on the controller and your ready to go. DC-LED output functionality allows you to connect any of Lake Lifters LED lighting options to conveniently light up your boat house when going out or returning from an evening cruise. Wireless functionality allows you to easily operate your boat lift and light all from the palms of your hands.

Weather Proof Control Box: The industrial grade fiberglass control box is suited for operation in harsh enviornments.

GFCI Protected: Equipped with GFCI. Standard models include a 14ft GFCI protected power cord which can easily be shortened to meet your needs. Our coastal series is used for non-roof covered docks with internal GFCI and short cord.

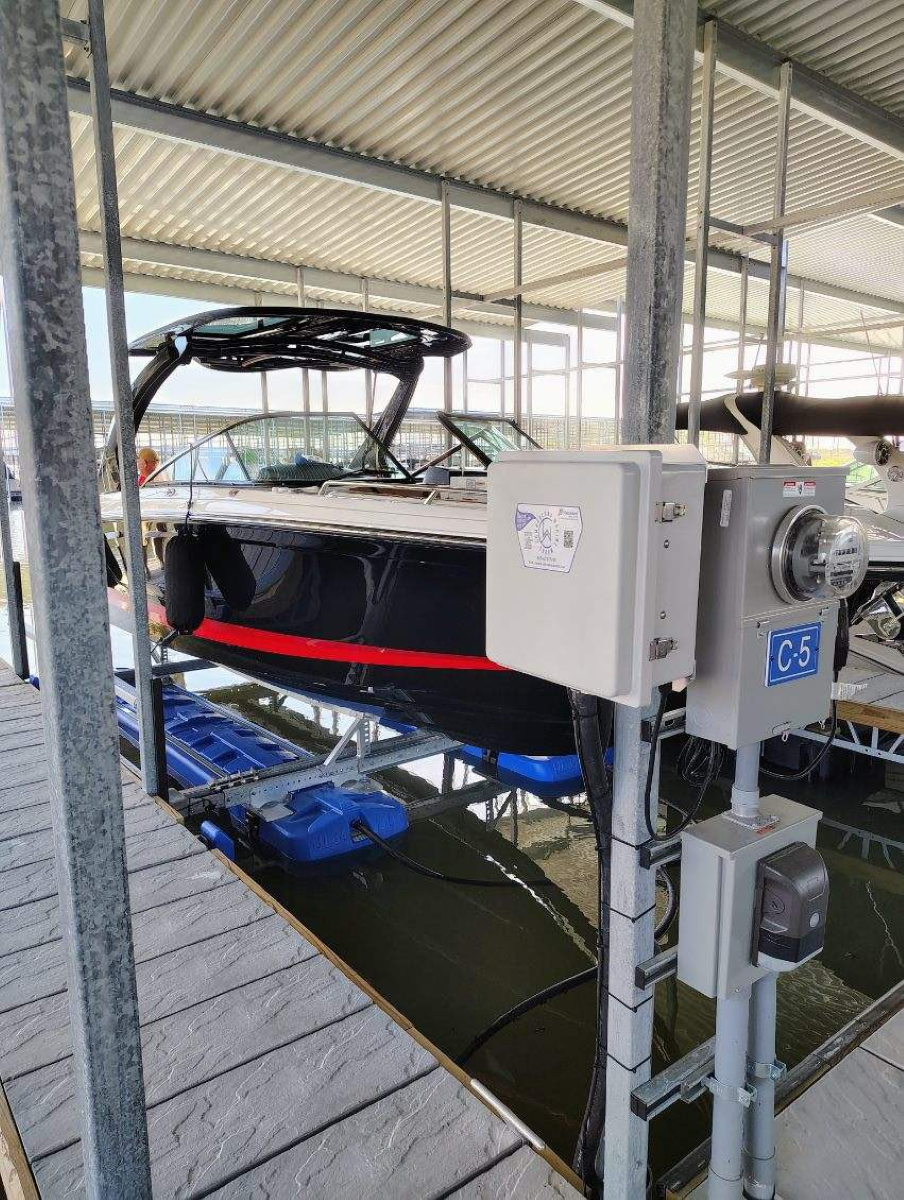

Size Matters: Save precious dock space with the industries most compact boat lift blower control box. Only 14x12x8 in size! Easily Mounts to any vertical post keeping your walkway free and clear.


Need help deciding which setup & configuration All-In-One Blower Motor Kit you need?
CLICK HERE or call our Office at (260) 239-0971.

AC Blower Control Box Instructions

AC Blower Control Box w/ Leak Guard Instructions

Leak Guard Protection Information
