Dual DC Stainless Steel Boat Hoist Motor + Solar Charging Kit 40w-24v
SAFER, FASTER, STRONGER: Introducing the first Boat Lift Motor + Solar Charging Kit - Stainless Steel DC 40w-24v by Lake Lifter. This NEW all-in-one kit offers everything needed to quickly convert your A-drive/E-Gear boat hoist to SAFE, RELIABLE, DC POWER.

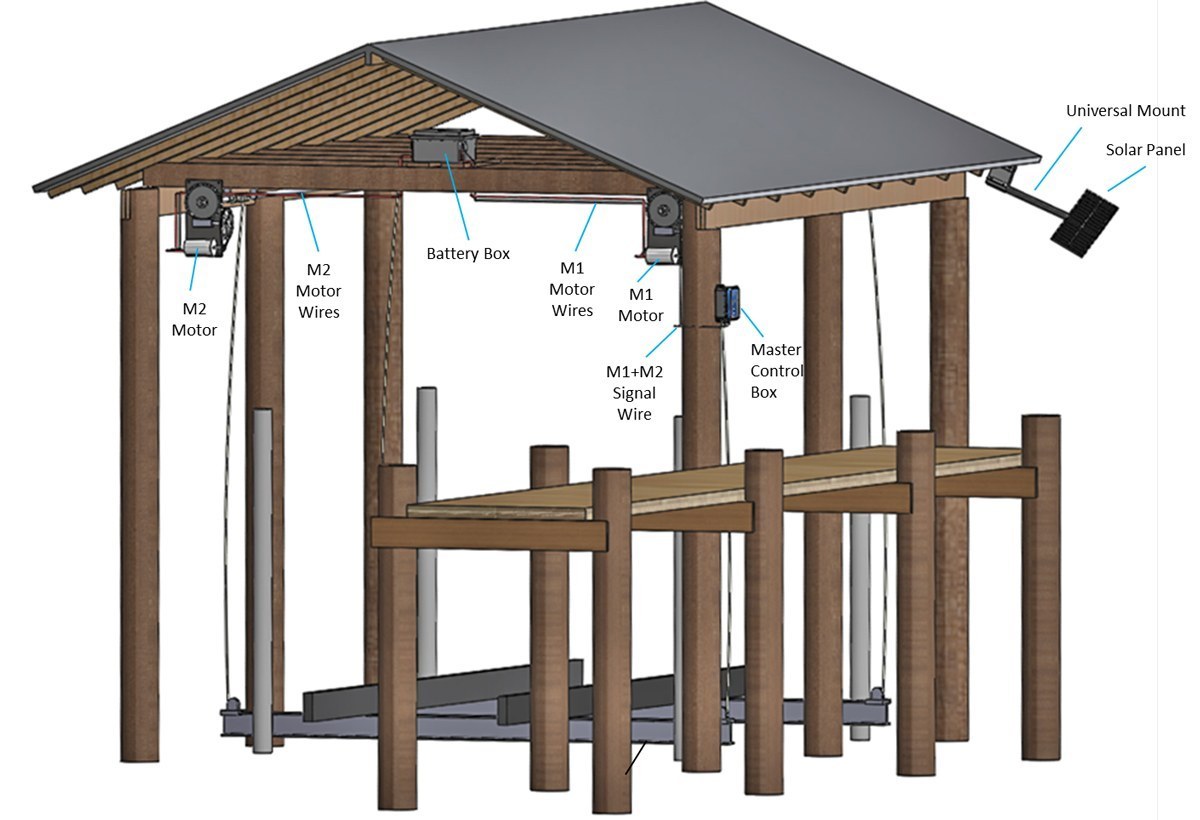

2 Wireless C-Face Stainless Steel Motor System features a powerful DC 24v 1.5hp Marine Grade Motor with a heavy duty control switch. Wiring cables, connectors & hardware are included. Our easy waterproof connect system makes wiring and installation quick and easy. (Fits and uses existing gear plate, belt + pulley hardware)

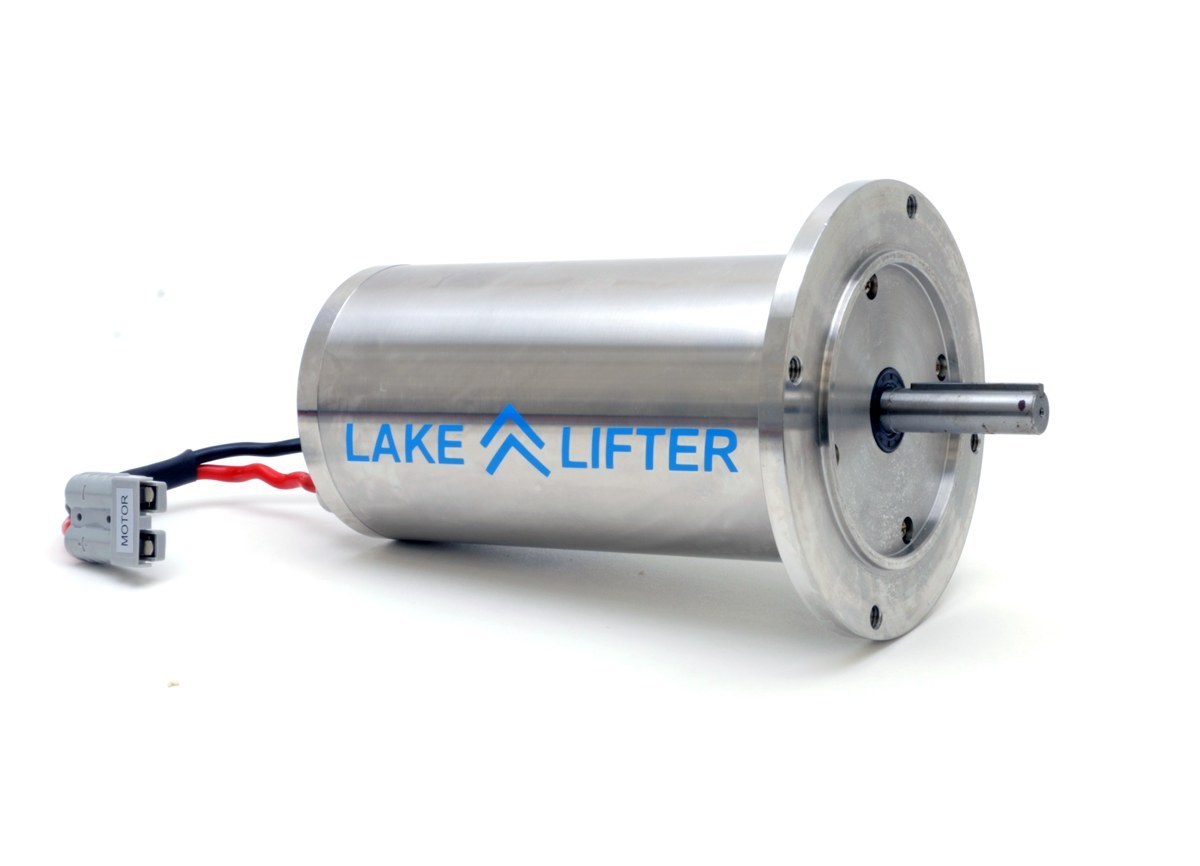

DC 24v 1.5hp MOTOR (Stainless Steel): The Lake Lifter Marine Grade DC Motor is 1.5hp and handles all single motor boat lifts with gear plates rated up to 8500 lbs. The Lake Lifter motor provides speed and convenience. The Lake Lifter Marine Grade Motor has faster lifting times compared to traditional AC powered. The sealed marine grade construction ensures trouble free operation year after year. A universal motor mount fits all flat-plate style open gear hoists, while the standard 5/8” shaft size fits all standard single and double pulley belt sizes.
CONTROLS: The heavy duty marine grade switch controls the UP/DN operation of the boat lift. The switch is mounted to any wall or vertical post. Press UP to lift the boat and DN to lower. NOTE: Manual systems are NOT equipped with a limit switch.
BATTERY POWERED: The C-Face Motor Kit operates on safe DC-24v power. Two 12v deep cycle batteries are combined in series to create 24v. – Batteries Not Included. A breaker fuse protects the system from any failure or overload. The breaker fuse is easily reset and does not require changing a fuse. The breaker fuse is installed in the lockable battery box and offers a convenient way to disconnect power preventing the boat lift from being operated.
BATTERY BOX: Our durable fiberglass battery dock box houses the two batteries, motor control box, breaker fuse, and wiring. The fiberglass battery box has optional lock to keep everything safe and secure.
SAFETY: The Lake Lifter Manual DC Motor Kit offers boat lift operators a safer & faster alternative to traditional AC powered boat lift motors. The Lake Lifter Manual DC Motor Kit operates from SAFE low voltage DC 24v power eliminating electrical shock hazards around water.

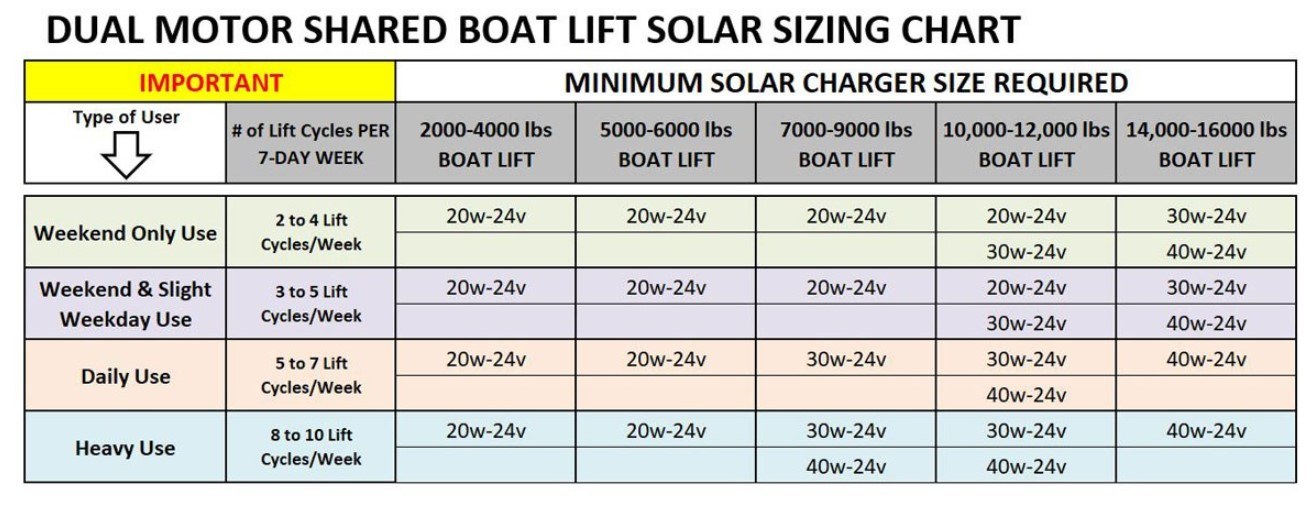

BOAT LIFT SOLAR CHARGING KIT: To prevent the batteries from being depleted you will need one of our Boat Lift Solar Charging Kits to recharge the batteries between uses. The size and style of the charging kits will vary depending on the boat lift size, boat weight, and how frequently the boat lift is used. Heavier boats and more frequent boat lift usage require larger charging kits to replace the power used. Please select one of the links below if you would like to purchase complete packages or solar charging kits separately. The Boat Lift Motor + Solar Charging Kit - Stainless Steel DC 24v 40w-24v offers everything needed to quickly convert your A-drive/E-Gear boat hoist to SAFE, RELIABLE, DC POWER.
Boat Lift Motor + Solar Charging Kit - Stainless Steel DC 40w-24v Key Features & Benefits
2 Year Warranty Against Manufacturer Defects
SAFE DC 24v
8,500+ lb Capacity
Safer & Faster than AC
Wireless Key Fob
Manual Wall Switch
2 DC 24v 1.5hp Stainless Steel Motors
2 Motor Slave Control Boxes

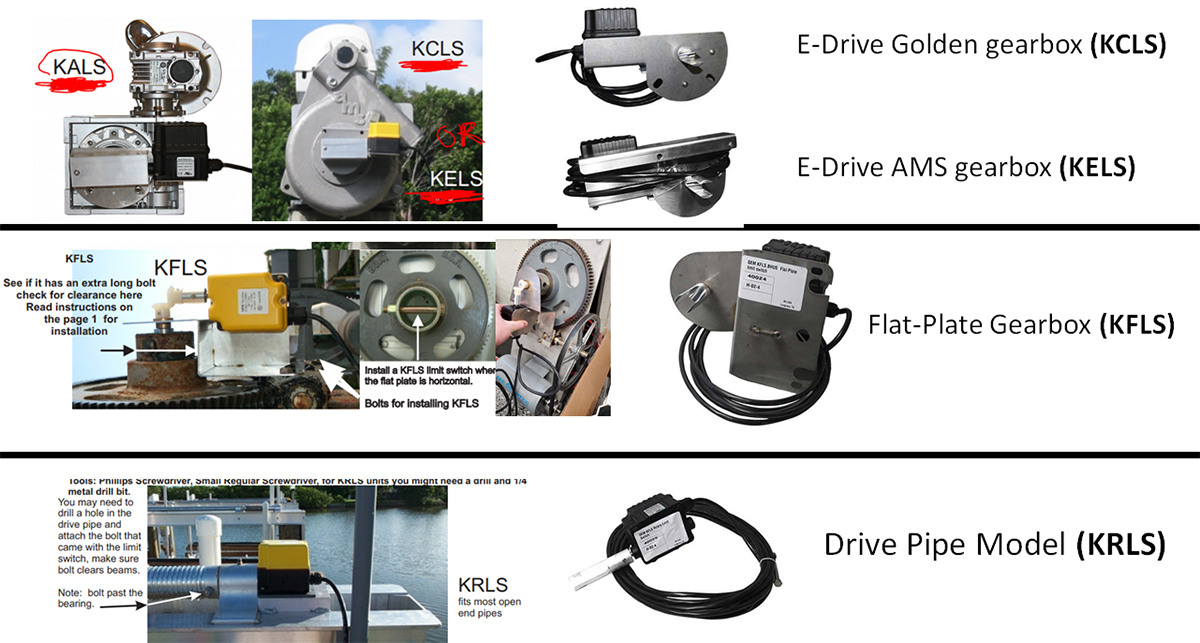

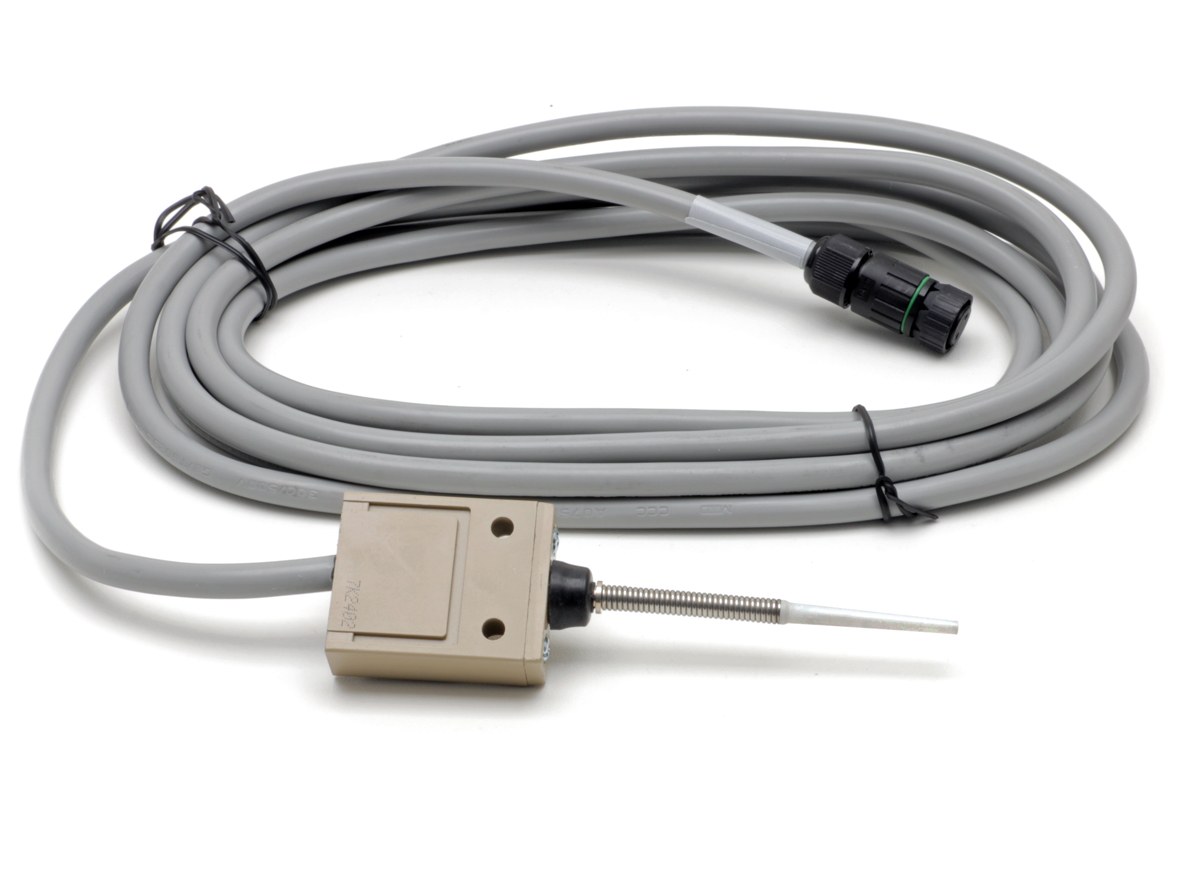

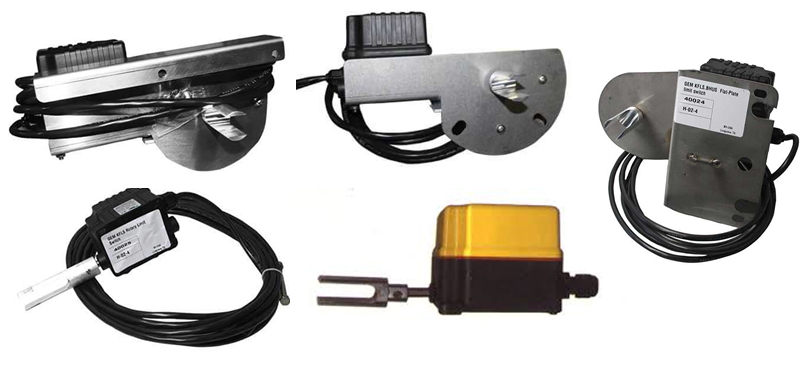

2 Limit Switches w/ 15ft cord
Wireless Master Control Box w/Remotes
80ft Control WIre (user cuts to length)

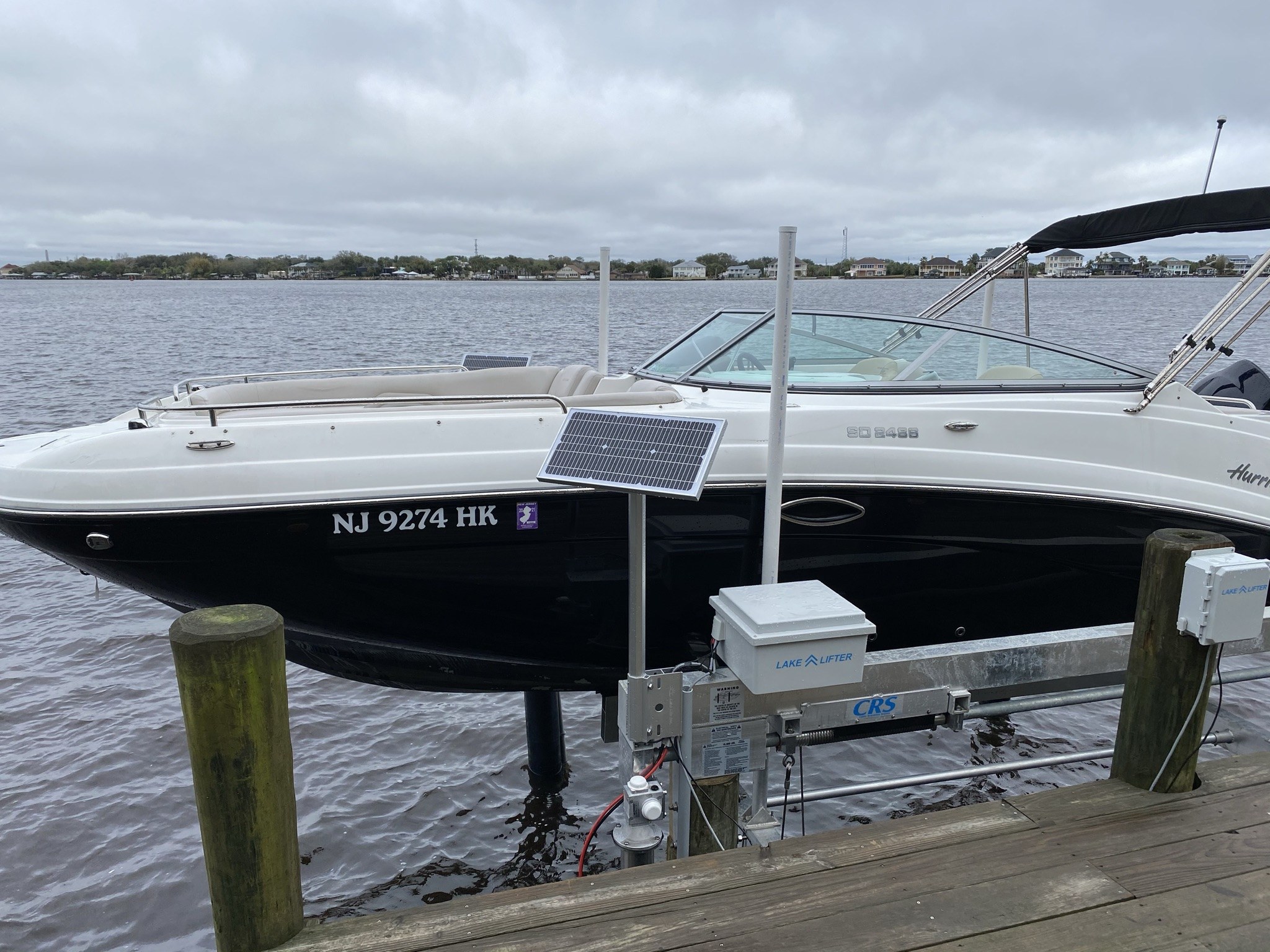

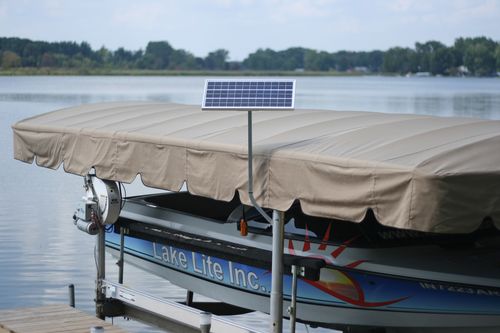

40w-24v Boat Hoist Solar Charging Kit
Keep your boat lift battery in top condition and ready to use at any time with Lake Lifter's 40w-24v Boat Hoist Solar Charging Kit. Our more advanced charging kit, the 40w-24v Boat Hoist Solar Charging Kit is the perfect charge for 24v DC boat lift systems using two 12v batteries. The added power of Lake Lifter's Boat Lift Charging Kit ensures better performance even on cloudy days allowing for higher useage. Our high quality solar panel will keep your boat lift battery in top condition so the DC lift motor has the power to raise and lower your boat. Illustrated instructions ensure fast and simple installation plus we offer a video for additional reference.
The 40w-24v Boat Hoist Solar Charging Kit is constructed to last using only the best materials to withstand harsh marine environments and UV radiation. The easily-adjustable anodized aluminum mounting arm resists corrosion and has the strenght to withstand high winds and storms. Furthermore, Lake Lifter's manufactures the highest quality solar panels available and are rated for 20+years life! With an emphasis on CELL quality, reliability, and longevity, Lake Lifter's 40w-24v Boat Lift Solar Charging Kit meets the highest customer standards. Our panels feature monocrystalline cells, a superior solar technology when it comes to efficiency. Superb low lighting performance, these single-crystal, silicon cell panels have a long lifespan, high durability, high reliability. These modules are sealed with low iron tempered glass and anodized aluminum alloy frames.
Boat Hoist Solar Charging Kit Features & Benefits
High-Efficiency Mono-Crystalline Solar Cells
Anodized Aluminum Frame
Mounts To Any Type Boat House
20+ Years Lifetime Panel Rating
24v DC System
Replaceable Wiring & Waterproof Connect System
Adjustable Angle for Maximum Solar Charge
HD Arm Easily Handles Storms & High Winds
Boat Hoist Solar Charging Kit Includes:
40w-24v High Efficiency Solar Panel & HD Wiring
24v 5A Solar Charge Regulator with LED Status Indicators
3/8" Battery Connection Ring Terminals & Waterproof Connect System
HD Mounting Arm/Z Brackets & Hardware
Fiberglass Battery Box
